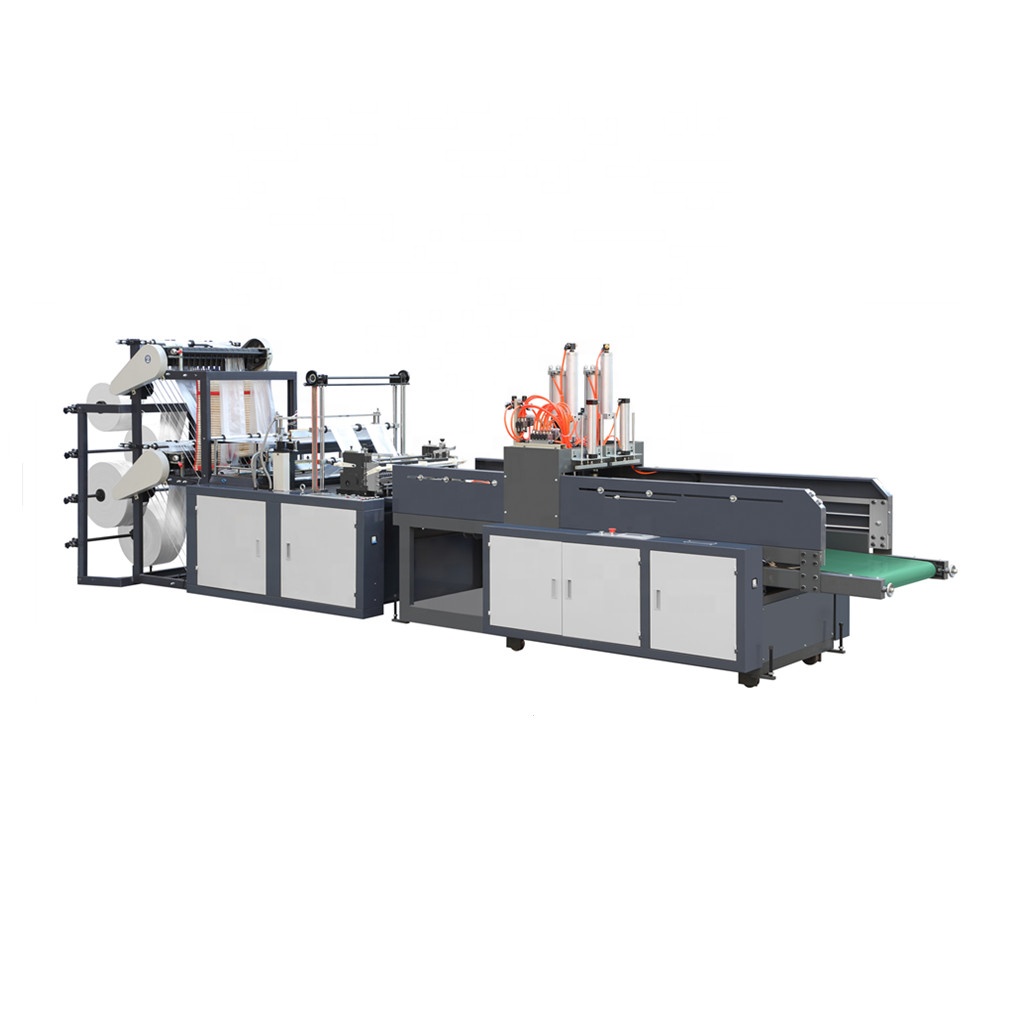

HSL-600-1200 Full Automatic Heat Sealing Cold Cutting T-Shirt Bag Maker Machine
| HSL-600-1200 Full Automatic Heat Sealing Cold Cutting T-Shirt Bag Maker Machine |
| Categories: Bag Making Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: [email protected] |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
Feature:
1.1 This machine is applied to manufacture and printing the uncolored vest bags made of HDPE, LDPE roll film.
1.2 It adopts computer control, stepper motor fixed length, photo-electric tracking, static elimination, host frequency control, automatic counting, automatic discharge, high parking.
1.3 LCD screen shows real time, from feed- back cover-cut-blurted-conveying automatic running.
1.4It is of high degree of automation and good economic result., can both suitable for color bag, blank shopping bag making.
1.5 adopt automatic punching function, increase vest bag making speed and save labor.
Main technical specification
|
Model |
HSLQ-600 |
HSLQ-800 |
HSLQ-1000 |
|
Cutting width |
150-250mm×4 |
150-350mm×4 |
150-450mm×4 |
|
Cutting length |
200-800mm |
200-800mm |
200-800mm |
|
Bag making speed |
20-120 pc/min×4 |
||
|
Work line |
1-4lines |
1-4lines |
1-4lines |
|
Power |
1.5kw |
2.2KW |
3kw |
|
Gross weight |
1300kg |
1400kg |
1600kg |
|
Install dimension |
5.3×1.2×1.9m |
5.3×1.4×1.9m |
5.3×1.6×1.9m |
bag picture show
-
