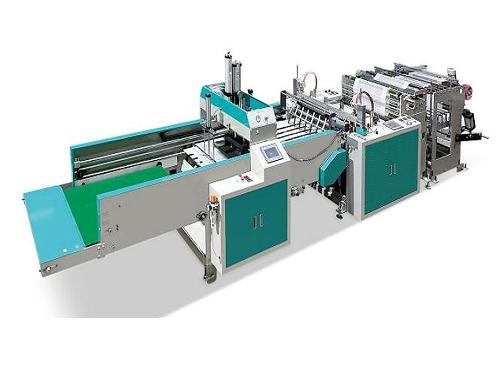

HSRQ-600/700/800G High speed Automatic Single line T-shirt Bag Heat Cutting Machine
| HSRQ-600/700/800G High speed Automatic Single line T-shirt Bag Heat Cutting Machine |
| Categories: Bag Making Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: [email protected] |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature:

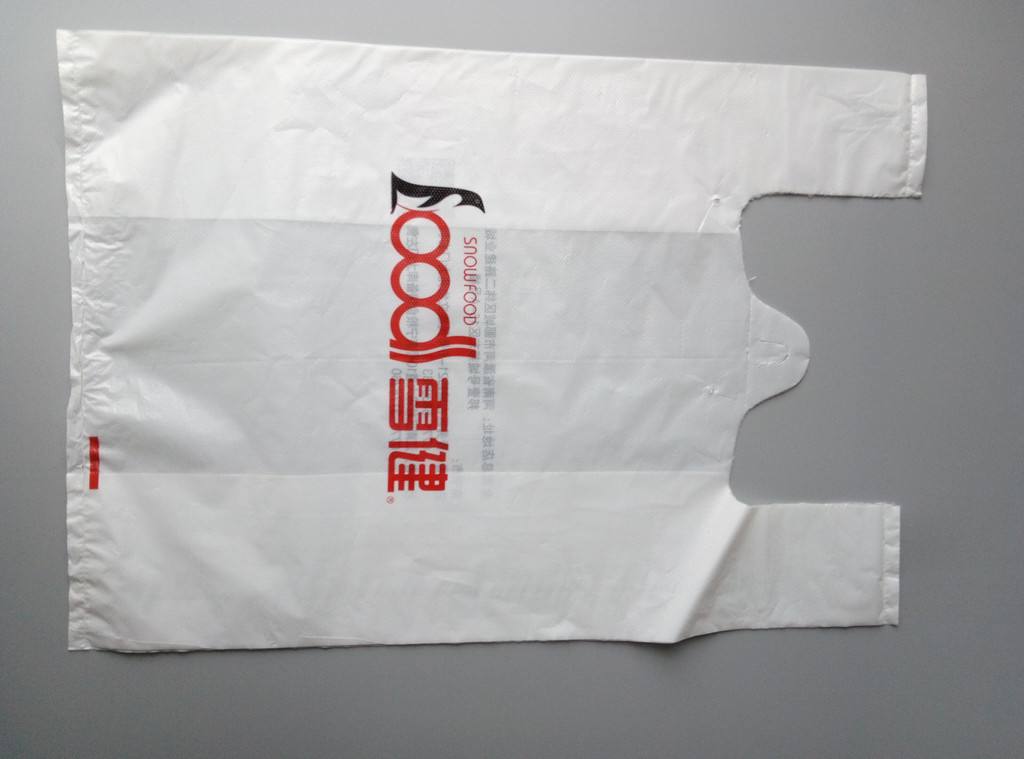

1)This machine is applied to manufacture and printing the uncolored vest bags made of HDPE, LDPE roll film.
2)It adopts PLC computer control, servo motor fixed length, photo-sensor tracking, static elimination, host frequency control, automatic counting, automatic discharge, high parking.
3) It is of high speed degree of automation and good economic result., can both suitable for color bag, blank shopping bag making.
4)adopt automatic punching function, increase vest bag making speed and save labor.
2. Main Technical Specification
|
Model |
HSRQ-600G |
|
Bag making width |
100-550mm |
|
Bag making length |
370-1000mm |
|
film thickness |
0.01-0.1mm |
|
Max.Bag making speed |
100-220pcs/min (depend on bag length) |
|
Air pressure request |
7.5HP |
|
Voltage |
220V,Single phase 50HZ |
|
Main motor |
1.5KW |
|
Total power |
9KW |
|
Gross weight |
1500KG |
|
Overall dimension |
5500×1400×1600mm |
-
