[1].Feature:

1)It is well proportioned and equipped with exhausting and filling device;

2) It can fully remove the moisture and volatile gas in the raw material.

3) It bring out ample granules in perfect appearance.

4) One times granule making can fulfill the master batch craft and technology requirements.

5) It can make different screw, heating and cooling system according to material parameter.

[2].Application:

1)It is applicable for various plastic organic and inorganic filling.

2) It can process the PE and PP plastic waste film recycle.

3) It can mix different kind of material together, such as ABS alloy material, EVA foaming material, PP, PE color master batch, TPU and POE ,etc.

[3].Main specification:

Model	SJ-120	SJ-160
Screw diameter	120mm	160mm
Screw L/D ratio	22:1	25:1
Screw speed	30-120r/min	30-120r/min
Barrel material	38CrMOLA	38CrMOLA
Main motor	37kw	55kw
Cutting motor power	1.5kw	2.2kw
Heating power	15kw	28kw
Max. Output capacity	80-100kg/h	200-220kg/h
Weight	3000kg	5000kg

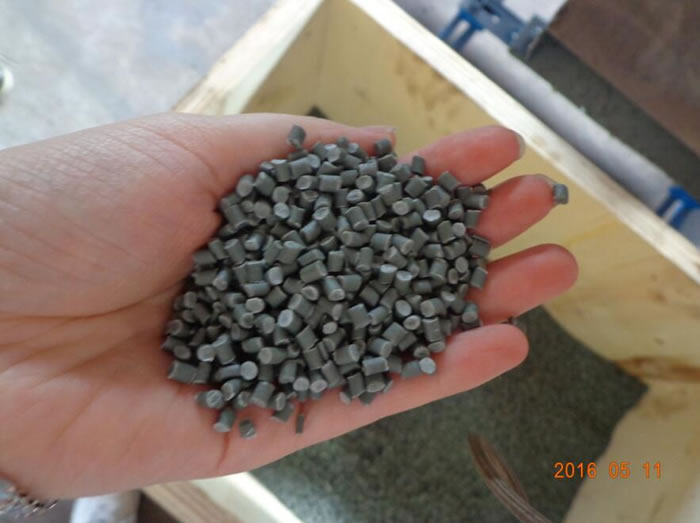

[4] granule product
