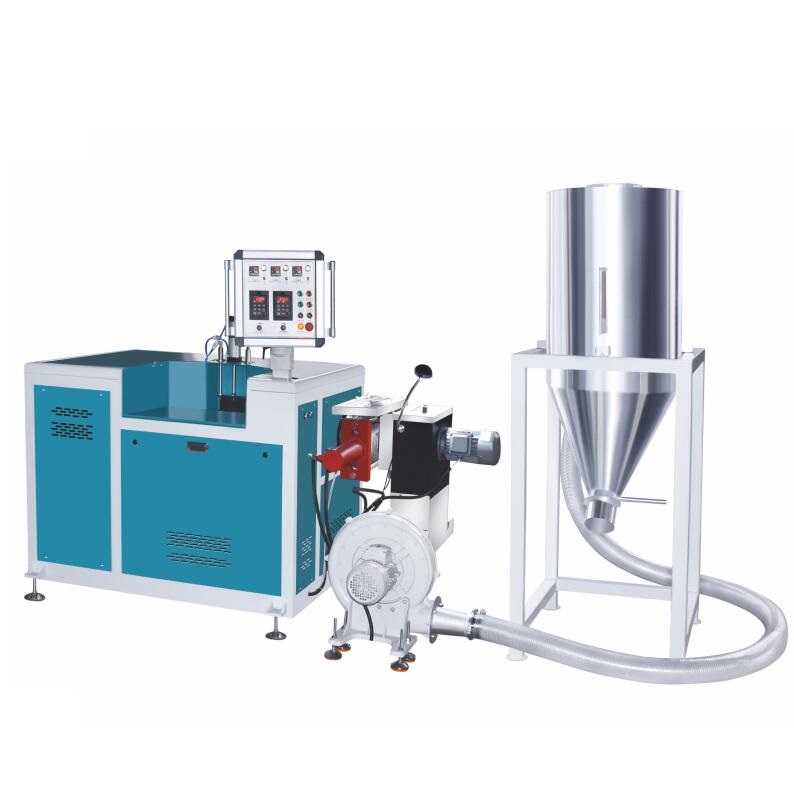

SJ-75 Air cooling recycle granulator machine
| SJ-75 Air cooling recycle granulator machine |
| Categories: Recycle Granulator Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: [email protected] |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature
1)This machine is suitable for HDPE, LLDPE, LDPE, PLA waste films and scraps.
2)With no mesh filter, rotary blade dicing.
3)Production process: low temperature type. Pure physical low temperature softening point granulation, lower than the melting point of the material, will not cause secondary damage to the raw material. (The screw does not need to be heated, and the first area of the pelletizing head is heated by 1kw)。
2.Machine Main Technical specification
|
Model |
SJ-75 |
|
Suitable material |
PE,PP,PLA,PBAT,EVA,etc |
|
Screw diameter |
75mm |
|
Screw material |
38CRMOALA |
|
Screw L/D ratio |
12:1 |
|
Screw length |
900mm |
|
Main motor |
18.5KW |
|
Output capacity |
50-70KG/H |
|
Die head motor power |
0.75KW |
|
Fan blower |
2.2KW |
|
Voltage |
380V, 5HZ, 3phase |
|
Gross weight |
1500KG |
|
Install dimension |
2.5×1.6×1.8M |
-
