HSRW-500/600B Full Automatic Stretch Film/Cling Film Rewinder Machine
| HSRW-500/600B Full Automatic Stretch Film/Cling Film Rewinder Machine |
| Categories: Slitting Rewinder Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: [email protected] |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature:
1. It is the latest style of stretch film rewinder in China. It is full automatically rewinding and cutting.
2. Adopt PLC touch screen. Guarantee the operation more correction and easy.
3. The speed is controlled system is: step motor + Inverter.
4. The main function is slit the jumbo rolls film into small rolls, and according to the rewinder can correct
the error layers of the production.
5. It is suitable for stretch film, cling film, fresh keeping film, and aluminum foil film, etc.
6. The production main used for packing, supermarket, hotel, restaurant, raw food, meat and sea food, etc.
7. Suitable for PE, PP,PVC film rewinder, with automatic change roll function.
2. Main Technical Parameter
Type
HSRW-600B
HSRW-500B
Suitable material
PP, PE, PVC stretch/cling film
PP, PE, PVC stretch/cling film
Width of finished products
100-600mm
100-500mm
Main motor
2.2kw
2.2KW
Machine working speed
150-400m/min
140-400m/min
Roll change model
Automatic change
Automatic change
Rewind model
Friction rewind
Friction rewind
Max. Unwind diameter
Φ400mm
400mm
Max. Unwind width
100-600mm
100-500mm
Core specification of parent roll
3'', 2'', 1''
3'', 2'', 1''
Max. Rewind diameter
Φ80mm
80mm
Rewind paper core diameter
according to customer request
According to customer
Weight
900kg
800kg
Install dimension
1.6×1.5×1.7m
1.6×1.4×1.7m

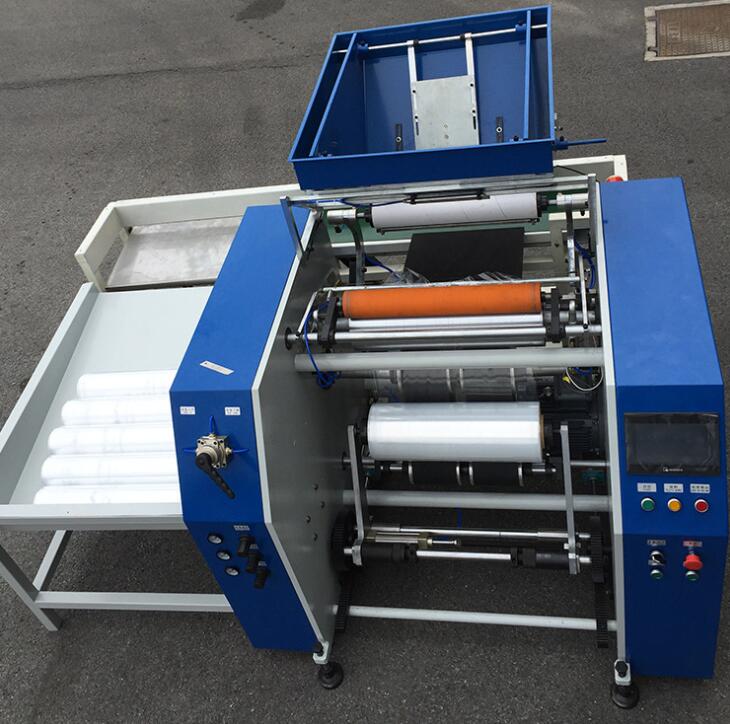

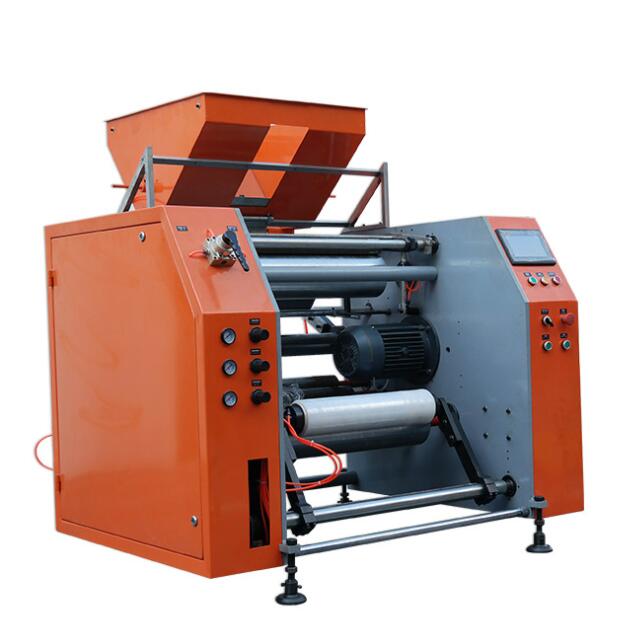

MACHINE PART PICTURE:
-
