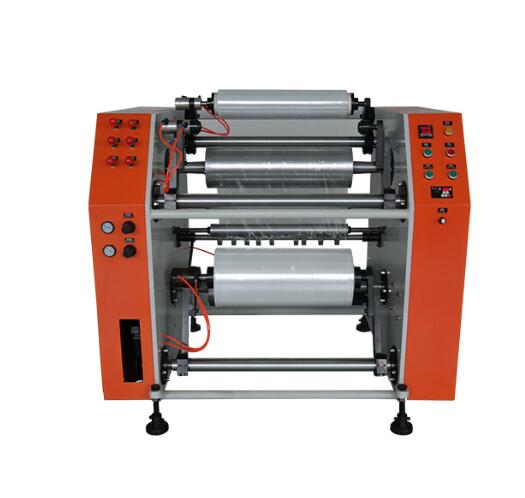

HSRW-500/600-1000 Stretch Film Slitting Rewinder Machine
| HSRW-500/600-1000 Stretch Film Slitting Rewinder Machine |
| Categories: Slitting Rewinder Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: [email protected] |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
Feature:
1. It is a kind of multi-functional machine integrated with slitting and rewinding.
2. It mainly slits large-sized or big roller stretch film into small ones, which avoids the split-level film and improves the technical index of product, such as level and appearance quality etc.
Main technical specification
Model
HSRW-500A
HSRW-600A
Width of Finished Product
500mm
600mm
Power of Motor
1.5kw
2.2kw
Design Line Speed
400m/min
400m/min
Roll Laying Mode
By hand
By hand
Max. Diameter of Parent Roll
400mm
400mm
Max. Width of Parent Roll
500mm
600mm
Core Specification of Parent Roll
3”
3’’
Max. Width of Sub-roll
500mm
600mm
Max. Diameter of Sub-roll
200mm
200mm
Core Specification of Sub-roll
3” 2” 1”
3” 2” 1”
Dimension
1.5×1.3×1.5m
1.5×1.4×1.5m
Weight
600kg
800kg

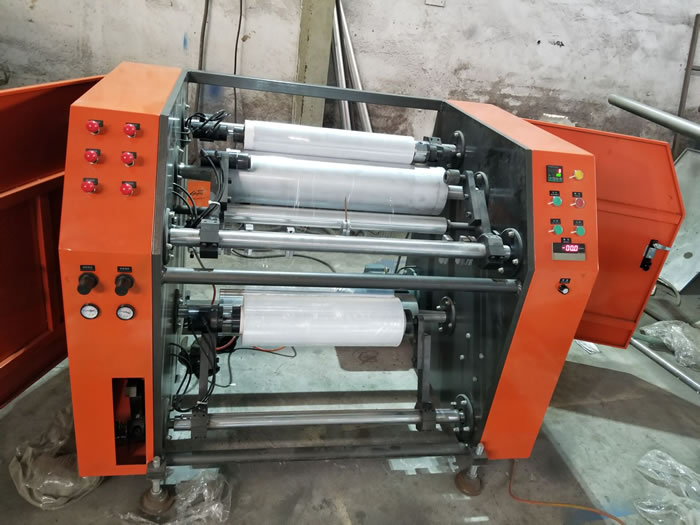

reality machine picture
-
